The new Heron™ has been developed by Datalogic in order to satisfy all requirements at the POS, providing high performance and an innovative design suitable for small retail POS applications. The new Heron™, based on the “INSTINCTIVE READING DISTANCE” concept (from near contact to over 20cm), includes the “green spot” (Datalogic patent application), which provides “good reading” feedback directly on the code, where the user usually tends to be looking.
Features
- Intuitive aiming in hands-free applications
- Datalogic “Green Spot”
- Stand included in the package
- Complete data formatting and data editing
- Firmware upgrading
- RSS-14 decoding capability
- Several models available
- Sunrise 2005 Compliant
|
 |

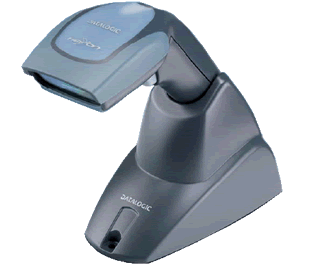

The stand included in the package allows the reader to be used in a hands-free mode. If placed correctly in the stand, the reader beeps and automatically switches to hands-free mode. In this mode, the green spot remains on to show the operator where to position the code under the Heron™ for quicker and intuitive reading. As a result, Heron™ is effective as a hand-held reader and presentation scanner.
Heron™ also provides full connectivity: three models are available with different interface sets. Besides the standard D130 multi-interface model (RS232, USB, WEDGE & WAND), other models are also available: the D110 model, which provides complete connectivity to main IBM cash registers and POS terminals, and the D140 model performs undecoded reader applications.
In addition, Heron™ reads Reduced Space Symbologies (RSS), an emerging symbology that can be printed on a smaller label, which meets emerging market needs for a greater amount of data on a symbol guaranteeing investment protection.
Applications
- Data capture in retail and office environments
- Suitable for residential environments or wherever the instinctive reading distance is preferred
Specifications
| Case Material |
ABS and Polycarbonate, plus co-moulded rubber |
| Weight |
About 160 g |
| Max. Scan Rate |
256 scans/sec |
| Voltage |
5.0 VDC +/- 10% |
| Light Source |
Visible red LED |
| Sensor |
CCD solid state (2048 pixels) |
| Reading Field |
EAN13 M=1 (0,33mm) max distance = 21 cm |
| Max. Resolution |
0.1 mm ( about 4 mils ) |
| Power Supply |
5VDC +- 5% |
| PSC |
min. 15% (Datalogic Test Chart) |
| Reading Indicators |
RS232 (C-Gryphon™ B/C) |
| Reading Angle |
LED, Good Read Spot, Beeper |
| Interfaces |
Heron D130: RS232, USB, Wedge & Wand
Heron D110: RS232 & IBM46xx
Heron D140: Laser/Output |
|
