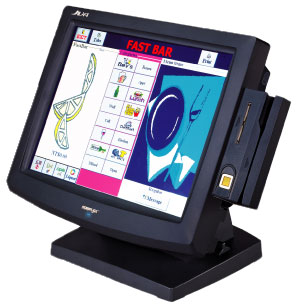

The new integrated JIVA 8000
series is an Intel-based all-in-one
touch terminal designed for
hospitality, retail and vertical
markets that require increased
performance at the front-end
workstation.
With a unique space saving design,
the base stand also houses an
optional internal UPS battery and a
primary 40GB EIDE HDD for easy
access. The JIVA 8000 includes a
15" high luminance TFT LCD panel
with brightness control commands
to meet any application
requirement.
|
 |
The JIVA-8015 houses the latest technology and security features the industry has to offer:
- ELO Accutouch or
Infrared Touch sensor
- 15.1" Dual Backlit LCD
panel - TFT active matrix
- 40GB EIDE-HDD resides
in base of unit for easy
access
- CPU: Intel Celeron 2.0
GHz and up
- Spill proof water-resistant
structure protects
circuitry and allows for
easy cleaning
- A patented finger release
lever "geared locking
mechanism" easily
adjusts the LCD tilt angle
from horizontal to vertical
- Security lock prevents
unauthorized access to
input / output data
devices
- LED indicates Power
"ON"
Options include:
- Integrated MSR, smart card and finger print reader (3-in-1) attachment.
- Integrated MSR, smart card reader, finger print sensor and 40-Dynakey programmable keyboard (4-in-1) attachment.
- Integrated customer display module.
Specifications
| LCD Resolution |
1024x768 |
| Brightness |
350 cd/m2 |
| Audio Output |
Standard |
| LCD Panel |
15" |
| CPU |
Celeron 2GHz |
| Touch Resolution |
1024x1024 |
| Second Display Interface |
VGA |
| Display Memory |
64 bit, memory size programmable up to 64 MB |
| DIMM Memory |
PC100 SDRAM X 2 DIMM up to 1GB |
| Serial Port |
4 ports with 5V DC support |
| Parallel Port |
1 |
| CR Port |
1 port controls 2 devices (under COM1) |
| USB Port |
2 |
| KB Port |
1 x PS/2 type |
| Mouse Port |
1 x PS/2 type |
| LAN Port |
10/100 MHz base Ethernet |
| 2nd IDE Port |
1 |
| HDD |
40 GB up |
| FDD |
Option for USB interface |
| Internal UPS |
Yes (Battery optional) |
| ON/OFF Control |
Software controlled for mechanical ON/OFF or mechanical On and software OFF |
| Touch Sensor |
Resistive (Anti-scratch IR type option) |
| Tilt Adjustment |
From 17.5°X to 87.5°X |
| Power Wake Up |
Through alarm / LAN / RS232 modem |
| Mounting Option |
Table top |
| Power Savings |
Stand by mode |
| Touch Control Function |
Emulate mouse left/right button, double click and drag & drop |
| Touch Beep Controls |
Sound pitch adjustment, sound enable/disable by software |
| Power Supply |
AC Adaptor input 100˜ 240V, output DC 12V/80W |
| Housing Colour |
Charcoal |
| Dimension |
375mm (W) x 270mm (D) x 301~378mm (H) |
| OS Support |
WIN 2000/XP Pro/LINUX |
| Weight |
10.2 Kg |
|
